XXD A2212 2212 2450KV KV2450 Motor 40A ESC 5030 Prop Blade Propeller RC Power System Combo for RC Drone Airplane Support 2s-4s
ESC Features
The imported three-terminal voltage regulator or high-quality power supply management module is adopted to provide the BEC voltage, which has strong load capacity and the protection of the BEC output short circuit
Compared with similar products, this product is smaller in size, lighter in weight and lower in power consumption
Adopt high performance N channel MOS tube
Automatically adjust the throttle stroke
Support for programming Settings
Specification
ESC
Brand Name : HTIRC
Item Name : 40A Brushless ESC
Continue current : 40A
Instantaneous current : 50A (10s)
Recommanded lipo : 2-4S Lipo / 5-12NC
BEC: Linear
BEC Output :5 v / 3
Size : 52 * 26.3 * 11mm
Weight : 43g
Programmable : Yes
MOTOR
Brand Name:XXD
Item NO.: XXD A2212
KV: KV2450
Size:27.8 x 27mm
Shaft Dia.:3.17mm
LiPo:2-4s LiPo
Efficiency :80%
Current :4-10A(efficiency >75%)
Non-load current:10 v / 0.4 a
Max Instantaneous current:12/60 times
Propeller :5030

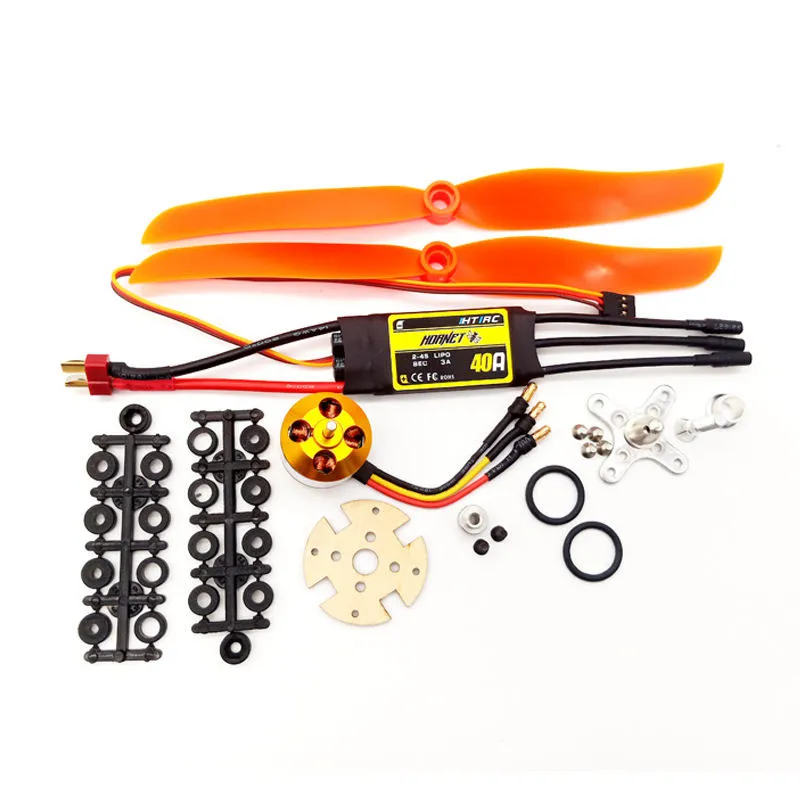

Packager Included
1 x XXD 2212 Brushless Motor
1 x Htirc 40A ESC
2 x Propeller
1 x Accessories Pack
