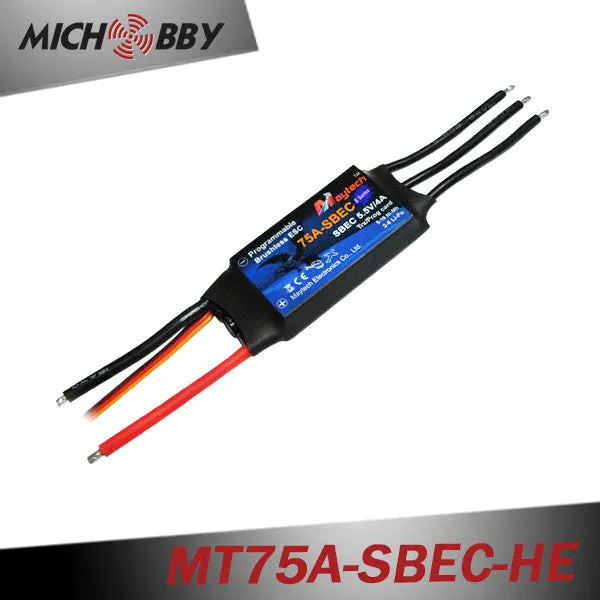

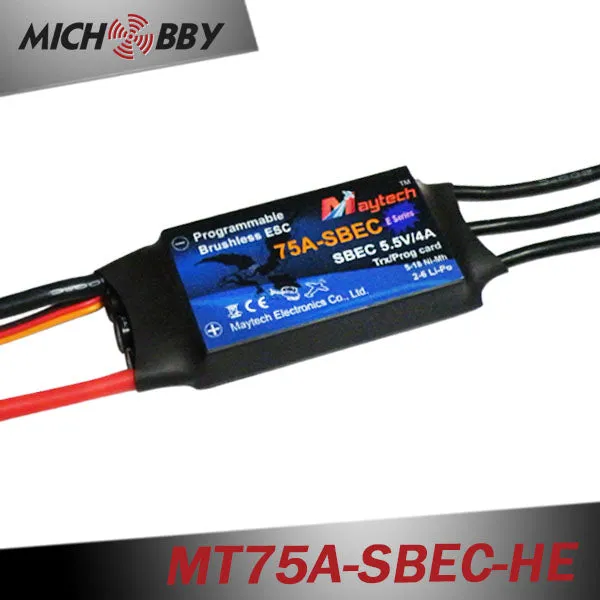

75A 6S ESC Brushless Electric Speed Controller for RC Airplanes Helicopters MT75A-SBEC-HE
Model NO.: MT75A-SBEC-HE
Series Type...................................... Maytech Harrier-Eco Series
Cont.Current ................................... 75A
Burst Current ................................... 80A
BEC.................................................. 5.5V/4A
Lipo................................................... 2-6 cells
Net Weight ........................................ 85g
Size.................................................... 83*37*17mm
Price do not include prog-card
Application: Airplane/RC Airplane/3D flying/RC Hobby Applications/sport flying/aggressive aerobatics/helicopter/racing airplane/ROV/ROVEEE/remote operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots,cablecam, broadcast, IBC2019, Ultra drones, etc.,
Product Features:
- Excellent startup performance, great throttle linear and quick throttle response, excellent low-speed performance.
- Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference.
- Low-voltage protection, block-rotation protection and signal lose protection, etc. All these functions can effectively prolong ESC service life.
- Programmable by Trx or by a Maytech programming card (optional). Program-Card has a simple and visual surface to conveniently change parameters at any time anywhere.
- Safe start-up. The motor won’t be started no matter which position the throttle stick is on when battery connected.

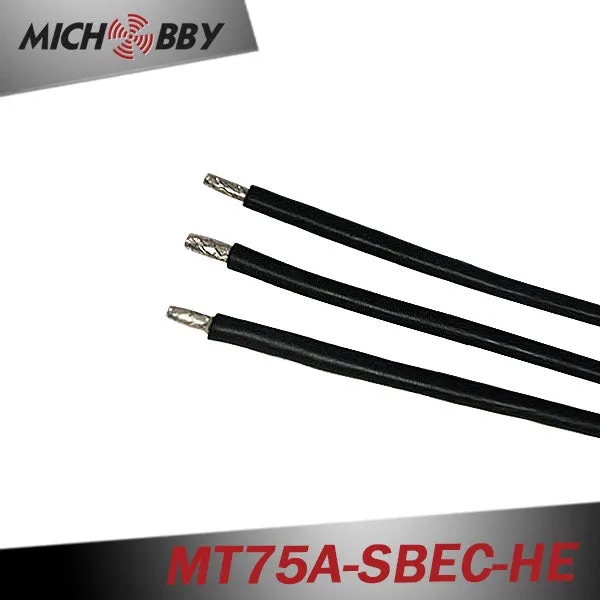

- Motor rotating direction can be changed by exchanging two of three wires from ESC or setting by the Program-Card.
Progcard for programming HE ESCs:
